Ladder pedals.
Paring the radios.
Firewall.
Coolant tank filler.(The smaller one)
Remake the breather and change its position in order to avoid the interference with the strut frame.
You can also see the gun-synchro units between the blasts.
Hydraulic actuator for 20mm canon.
Installed.
Painting. Of course, in Yellow Green #7 for all.

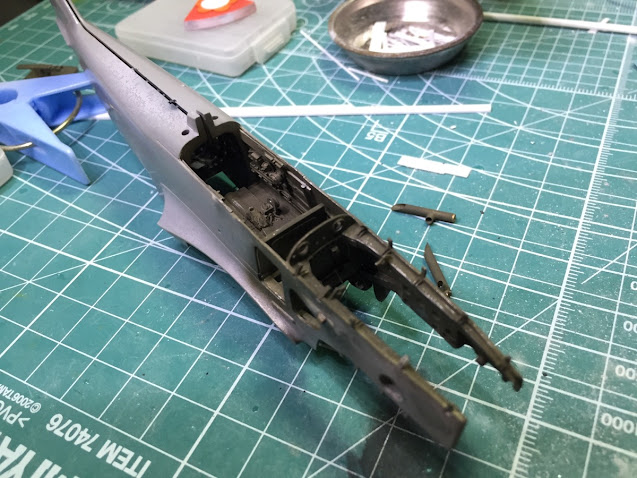

Starting to weather.

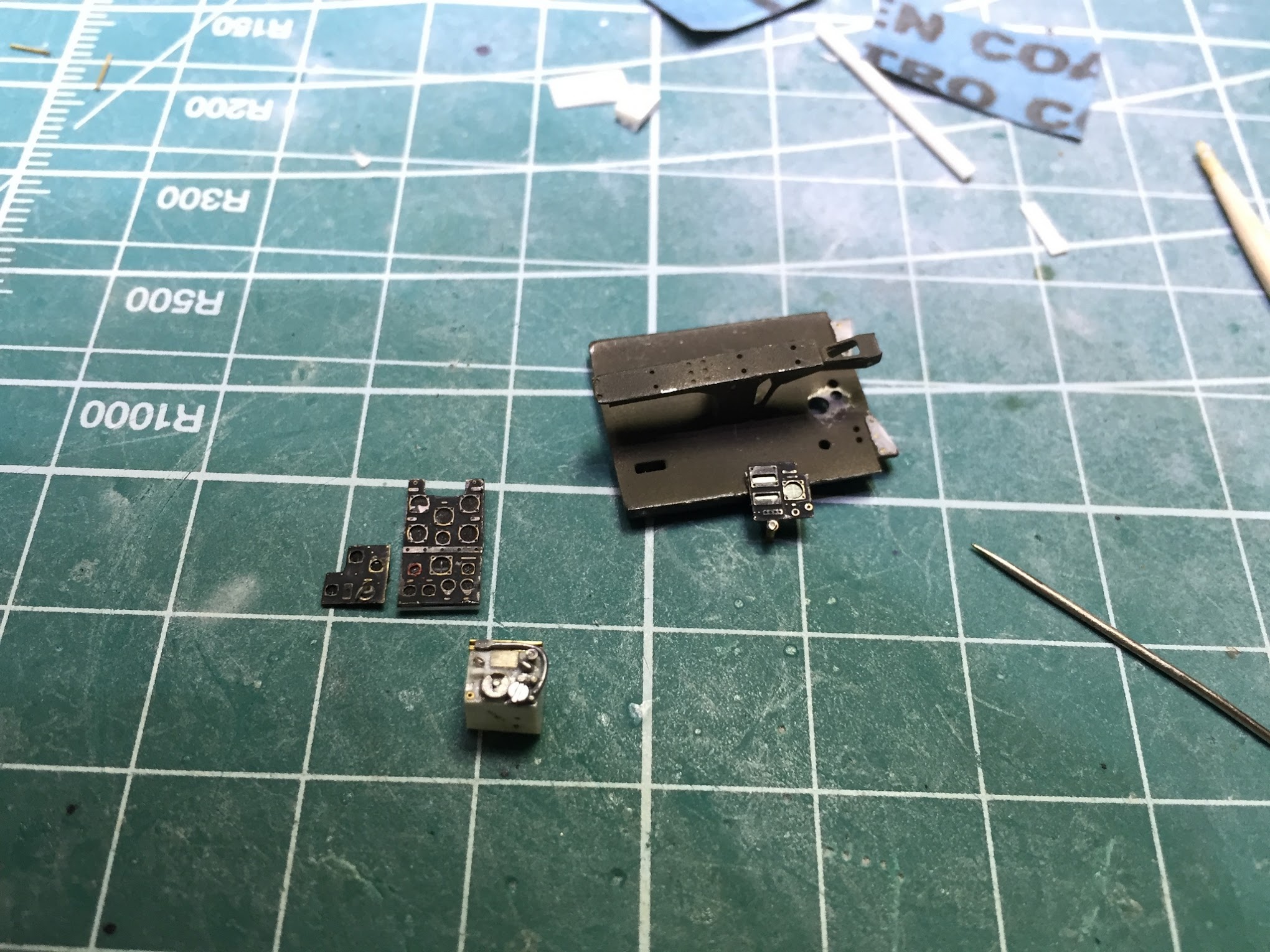

Started the work for meter panel.
What are these ?
The backside of the meter panel !
Follow me!
I’m working on a Hien with an exposed engine but can’t find any clear, detailed, pictures of the top. Can you tell me what reference material you used for the engine?
Hello, Jim.
When you’d like to build Ki-61i with Ha-40 engine, you can refer to the famous photos below.
https://tets-ri.sakura.ne.jp/root/wp-content/uploads/2023/04/IMG_5025.jpg
https://tets-ri.sakura.ne.jp/root/wp-content/uploads/2023/04/IMG_5026.jpg
But as to Ki-61ii with Ha-140 engine, there’s no photo showing how the auxiliary equipments on the top of the engine were. So, for my build, I researched it on some diagrams of coolant, fuel and oil from “Maru Mechanic Book” to reason how they would look like.
Does it help you ?
Tets
